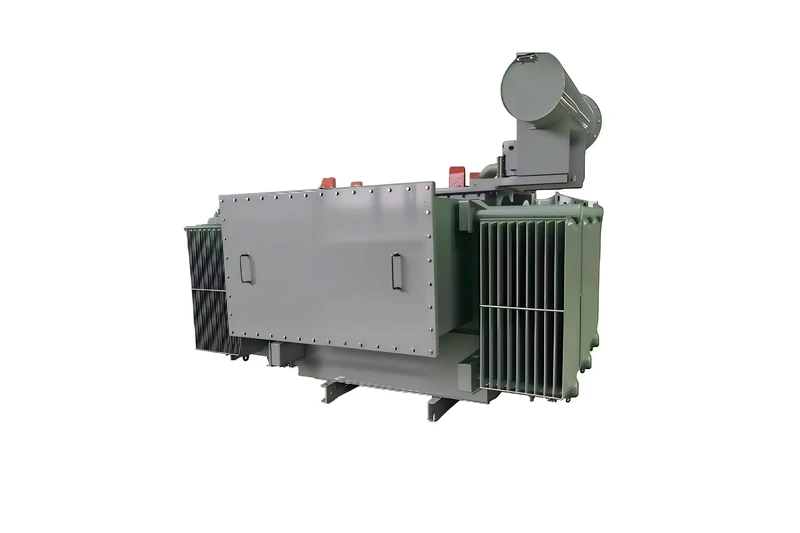

Transformer distribusi terbenam minyak tiga fase 1500kVA

Transformator terbenam minyak tiga fase 1500kVA memiliki kapasitas yang relatif besar, membuatnya cocok untuk produksi industri hingga menengah, pusat komersial, fasilitas publik, dan distribusi energi regional di mana permintaan daya tinggi diperlukan.

Harga Download User Manual

Tabel Parameter spesifikasi

Parameter	Rincian
Model produk	S11-1500/22
Kapasitas yang dinilai	1500 kVA
Nilai tegangan	22 kV / 0.69 kV
Rentang ketuk	22 kV ± 2 × 2.5%
Metode pendinginan	Khan
Vector group	YNd11
Nilai arus	39.4 A / 1255 A
Tidak kehilangan beban	Po ≤ 1680 W
Arus tanpa muatan	Io ≤ 0.6%
Kehilangan beban (pada 75 °C)	Pk ≤ 15900 W
Impedansi hubungan arus pendek	6%
Tingkat insulasi	HV 24kv/125KV Li/50kV AC, LV Um = 5kV.

Transformator dan sakelar

INDEX_15

INDEX_16

Kontak

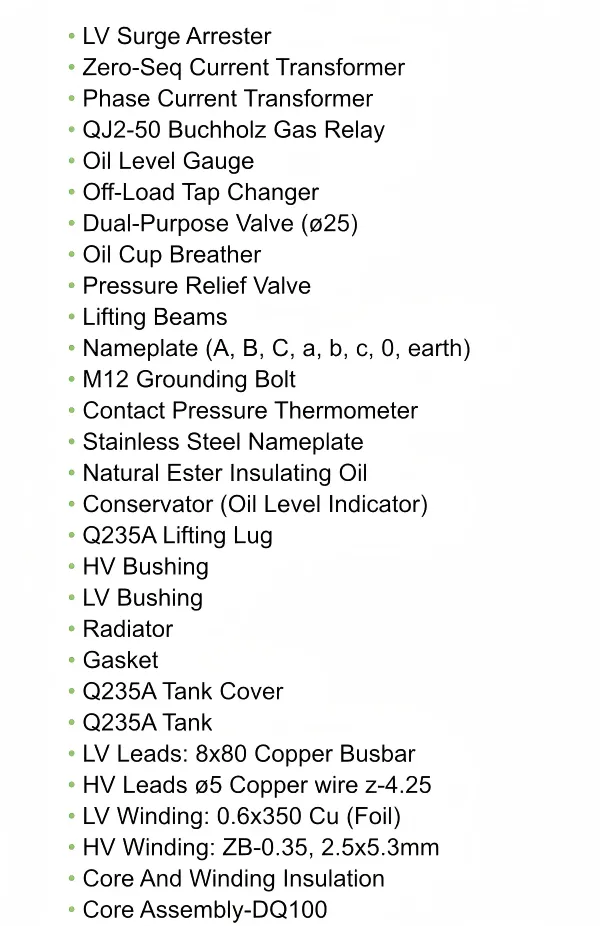

Gambar dan aksesori

Foto Produksi Pabrik
